LM2904 - AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS

LM2904 - AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS



DIODES Incorporated



Description

LM2902Q/LM2902AQ/LM2904Q/LM2904AQ 시리즈는 매우 낮은 입력 오프셋 전압 사양을 갖춘 2개 또는 4개의 독립적인 고이득 연산 증폭기로 구성되어 있습니다. 이 제품은 광범위한 전압에서 단일 전원 공급 장치에서 작동하도록 설계되었지만, 분할 전원 공급 장치에서도 작동이 가능합니다. 이 제품은 전원 공급 전압의 크기에 관계없이 낮은 전원 공급 전류를 제공합니다.

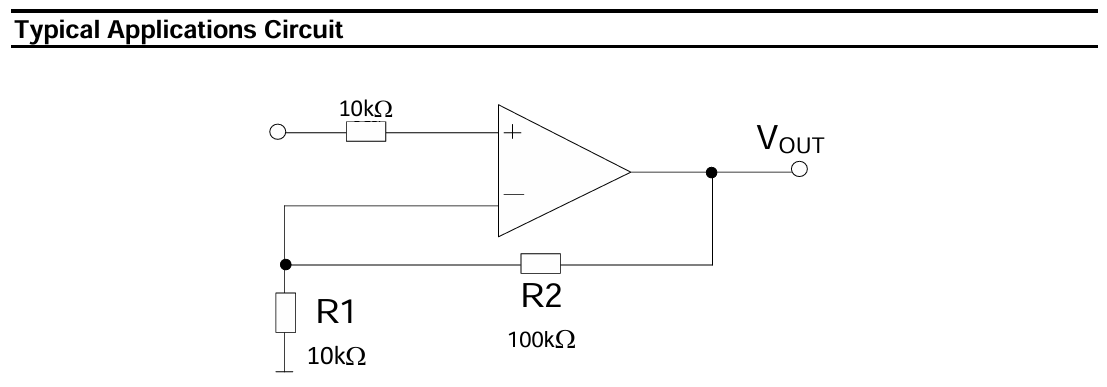

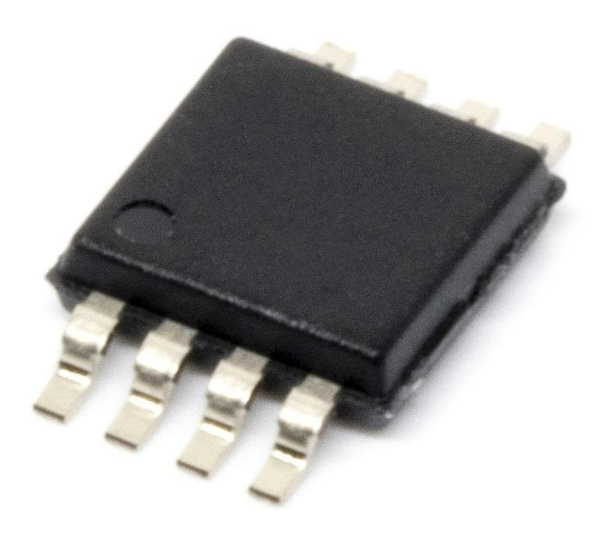

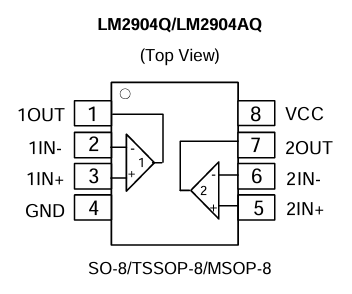

LM2904Q/LM2904AQ 듀얼 디바이스는 SO-8, TSSOP8 및 MSOP-8 패키지로 제공됩니다. LM2902Q/LM2902AQ 쿼드 디바이스는 SO-14 및 TSSOP-14 패키지로 제공됩니다. 이 모든 제품은 산업 표준 핀아웃이며 표준으로 "녹색" 몰드 컴파운드를 사용합니다.
LM2902Q/LM2902AQ/LM2904Q/LM2904AQ는 -40°C ~ +125°C에서 작동하도록 설계되었으며 AEC-Q100 1등급을 충족하고 자동차 규격을 준수하며 PPAP를 지원합니다.



Features

• Wide Power Supply Voltage Range
    ▪ Single Supply: 3V to 36V
    ▪ Dual Supplies: ±1.5V to ±18V
• Very Low Supply Current Drain – Independent of Supply Voltage
    ▪ LM2904Q: 500µA
    ▪ LM2902Q: 700µA
• Low Input Bias Current: 20nA
• Low Input Offset Voltage
    ▪ A Versions: 1mV (typ)
    ▪ Non-A Version: 2mV (typ)
• Large DC Voltage Gain: 100dB
• Wide Bandwidth (Unity Gain): 700kHz (Temperature Compensated)
• Internally Compensated with Unity Gain
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to Power Supply Voltage
• Large Output Voltage Swing: 0V to VCC -1.5V
• Qualified to AEC-Q100 Grade 1
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• The LM2902Q/LM2902AQ/LM2904Q/LM2904AQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/

















.

.
