ISO1044 - Isolated CAN FD Transceiver in Small Package

ISO1044 - Isolated CAN FD Transceiver in Small Package



TEXAS INSTRUMENTS



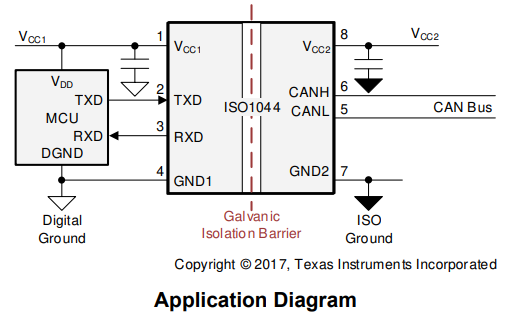

Description

ISO1044B 장치는 ISO11898-2(2016) 표준 사양을 충족하는 갈바닉 절연 CAN(Controller Area Network) 트랜시버입니다. ISO1044B 장치는 ±58V DC 버스 오류 보호 및 ±12V 공통 모드 전압 범위를 제공합니다. 이 장치는 CAN FD 모드에서 최대 5Mbps의 데이터 속도를 지원하므로 기존 CAN에 비해 훨씬 빠른 페이로드 전송이 가능합니다. 이 장치는 내전압이 3000VRMS이고 작동 전압이 450VRMS인 이산화규소(SiO2) 절연 장벽을 사용합니다. 시스템 수준의 ESD, EFT, 서지 및 방출 규정을 준수할 수 있도록 전자기 호환성이 크게 향상되었습니다. 절연된 전원 공급 장치와 함께 사용되는 이 장치는 고전압으로부터 보호하고 버스의 잡음 전류가 로컬 접지로 유입되는 것을 방지합니다. ISO1044B 장치는 –40°C ~ +125°C의 넓은 주변 온도 범위를 지원합니다. 이 장치는 CAN 트랜시버를 분리하기 위해 광커플러를 사용하는 기존 접근 방식에 비해 솔루션 크기를 크게 줄이는 소형 SOIC-8(D) 패키지로 제공됩니다.



Features
• Meets the ISO 11898-2:2016 physical layer standard
• Supports classic CAN up to 1 Mbps and FD (flexible data rate) up to 5 Mbps
• Protection features
 – DC Bus Fault Protection Voltage: ±58 V
 – IEC ESD tolerance on bus pins: ±8 kV
 – HBM ESD tolerance on bus pins: ±10 kV
 – Driver dominant time out (TXD DTO)
 – Undervoltage protection on VCC1 and VCC2
• Common-mode voltage range: ±12 V
• Ideal passive, high impedance bus terminals when unpowered
• High CMTI: 85 kV/µs minimum
• VCC1 voltage range: 1.71 V to 5.5 V
 – Supports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic interface to the CAN controller
• VCC2 voltage range: 4.5 V to 5.5 V
• Robust electromagnetic compatibility (EMC)
 – System-Level ESD, EFT, and surge Immunity
 – Low Emissions
• Ambient temperature range: –40°C to +125°C
• 8-SOIC package
• Safety-related certifications:
 – All certifications planned
 – VDE reinforced insulation per DIN VDE V 0884-11:2017-01
 – UL 1577 component recognition program
 – IEC 60950-1, IEC 62368-1, IEC 61010-1 and GB 4943.1-2011 certifications













.

.
