DAC39RF10 - 10.24-GSPS, 16-bit, Dual and Single Channel, Multi-Nyquist Digital-to-Analog Converter (DAC)

DAC39RF10 - 10.24-GSPS, 16-bit, Dual and Single Channel, Multi-Nyquist Digital-to-Analog Converter (DAC) with JESD204B, C Interface



Texas Instruments



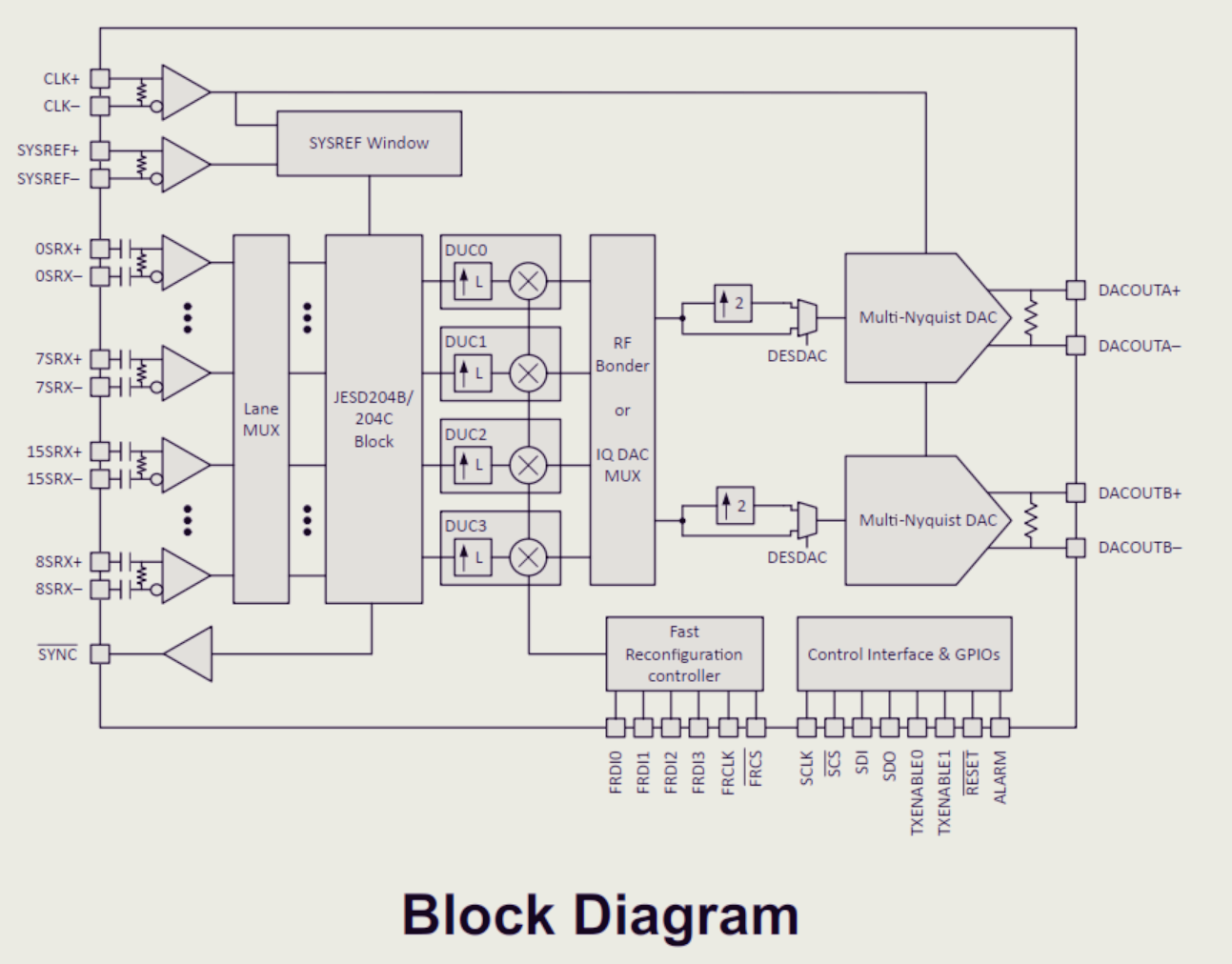

Description

DAC39RF10은 16비트 분해능의 단일 및 이중 채널 DAC(디지털-아날로그 변환기) 제품군입니다. 이 장치는 단일 채널 또는 이중 채널 비보간 DAC로 사용할 수 있습니다. 이 장치는 직접 RF 샘플링 모드 또는 기저대역 모드에서 보간 DAC로도 사용할 수 있습니다. 최대 입력 데이터 속도는 단일 채널 모드에서 20.48GSPS, 이중 채널 모드 또는 기저대역 모드에서 10.24Gsps입니다. 이 장치는 8GHz를 초과하는 반송파 주파수에서 최대 10, 7.5 및 5GHz 신호 대역폭(8, 12 및 16비트 입력 분해능)의 신호를 생성할 수 있어 C-대역을 통해 X-대역으로 직접 샘플링할 수 있습니다.
높은 샘플링 속도, 출력 주파수 범위, 64비트 NCO 주파수 분해능 및 위상 일관성이 있는 모든 주파수 호핑 덕분에 DAC39RF10은 AWG(임의 파형 생성) 및 DDS(직접 디지털 합성)가 가능합니다.
JESD204B 및 JESD204C 호환 직렬 인터페이스에는 최대 12.8Gbps까지 가능한 16개의 수신기 쌍이 있습니다. 인터페이스는 SYSREF를 사용하여 결정적 대기 시간 및 다중 장치 동기화를 위해 JESD204B 및 JESD204C 하위 클래스 1을 준수합니다.





Features

• 16-bit, 10.24-GSPS, Multi-Nyquist DAC core
• Maximum input data rate:
– 8-bit, Single channel, DES mode: 20.48 GSPS
– 12-bit, Single channel, DES mode: 15.5 GSPS
– 16-bit, Single channel: 10.24 GSPS
– 8-bit, Dual channel, 10.24 GSPS
– 12-bit, Dual channel: 7.75 GSPS/ch
– 16-bit, Dual channel: 6.2 GSPS/ch
• Output bandwidth (-3 dB): 12 GHz
• Performance at fOUT = 2.997 GHz, DES2X mode
– Noise floor (small signal): –166 dBFS/Hz
– SFDR (-0.1 dBFS) : –67 dBc
– IMD3 (-7 dBFS each tone) : –70 dBc
– Additive phase noise, 10 kHz offset: -137 dBc/Hz
• Four Integrated Digital Up-Converters (DUC)
– Interpolation: 1x, 2x, 3x, 4x, 6x, 8x ... 256x
– Complex baseband DUC for I/Q output
– Complex to real upconversion for dual channel direct RF sampling
– 64-bit frequency resolution NCOs
• Fast reconfiguration interface for fast frequency hopping
– 4-bit data with 100 MHz clock
– 160ns reconfiguration (32-bit frequency and 16-bit phase)
– Any frequency hopping with phase coherence
• JESD204C Interface
– Up to 16 Lanes at up to 12.8 Gbps
– Class C-S, Subclass-1 Compatible
– Internal AC coupling capacitors
• SYSREF Windowing for automatic SYSREF timing calibration









.

.
