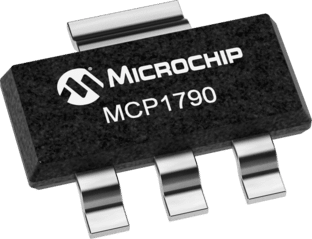

MCP1790 - High Voltage, LDO, 50 mA

MCP1790 - High Voltage, LDO, 50 mA



MICROCHIP



Summary

 MCP1790은 안정적인 고전압, 저전압 강하 레귤레이터(LDO)인 70mA 세라믹 출력 캡입니다. MCP1790은 최대 30V의 연속 입력 전압을 처리 할 수 있으며 최대 48V의 부하 덤프 보호 기능을 제공하므로 자동차 및 12V / 24V 산업용 애플리케이션에 특히 적합합니다. MCP1790은 열 성능이 향상된 DDPAK-3 패키지와 공간 효율적인 SOT223-3 패키지로 제공됩니다. 셧다운 및 파워 굿 옵션은 MCP1791을 참조하십시오.





Additional Features

• Wide steady state supply voltage: 6.0V - 30.0V
• 48V (43.5V ±10%) load dump protected for 180ms with a 30 second repetition rate
• 70 mA output current
• Low quiescent current: 70 µA typical
• Fixed output voltages: 3.0V, 3.3V, 5.0V
• Extended Junction Temperature Range: -40 to +125°C
• Output Voltage Tolerances of ±2.5% over the temperature range
• Short Circuit Current Foldback
• High PSRR, -90 dB@100 Hz (typical)
